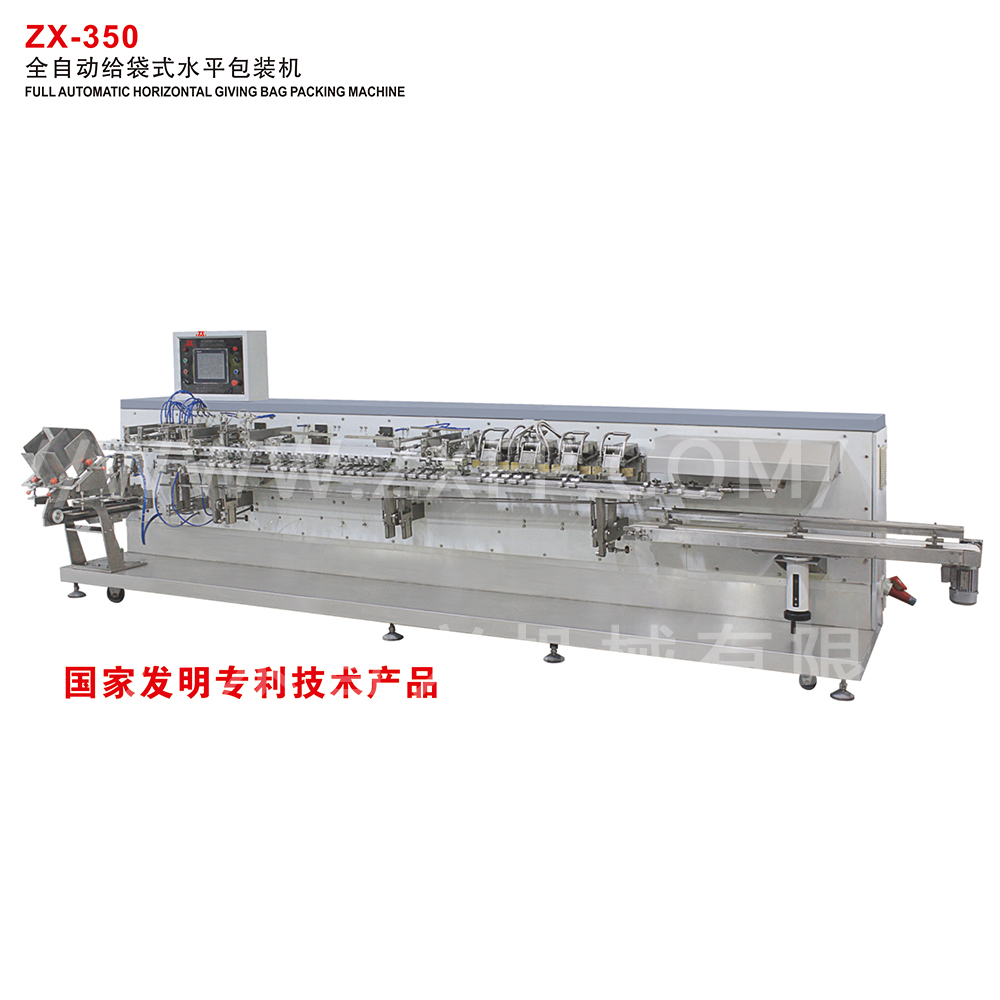

ZX-350 FULL AUTOMATIC HORIZONTAL GIVING BAG PACKING MACHINE

ZX-350 FULL AUTOMATIC HORIZONTAL GIVING BAG PACKING MACHINE

Model: ZX-350
Scope: packing powder, granule, bulk, liquid, sauce, paste products, foodstuff, medicine, chemical products. Full automatic giving bags, vacuum opening bags, repeatedly filling material, counting, sealing, conveying, all these actions are complete automatic.
Technology parameters
MODEL NO. ZX-350
Bag Material BOPP、CP、PE、PET、PA及纸塑复合膜
Bag Type Automatic stand-up packingbag, zipper bag, 4-side-seal bag, 3-side-seal bag etc.
Bag Size(mm) W:(80-90)x 4 (95-180)x 2 (300-400) x 1 L:100-400 Automatic stand-up packingbag, zipper bag, 4-side-seal bag, 3-side-seal bag etc.:40
Packing Speed(bag/min) 40-60(single bag) 60-120(double bags) 160-240(four bags)
Total Power(kw) 10
Air Pressure(Mpa) ≥0.5
Outside Dimension(mm) 4700x 1220x 1550

Main performance and structural characteristics:
Packing style and bags packing are multiple, such as doypack, zipper bag, four-side-seal bag and three-side-seal bag etc. Use different filling types to control, like electronic weigher filling, counting, pump filling, screw filling etc. Adopt PLC, touch screen, human-interface to control, makes the filling material more accuracy, no sticks on the bag mouth and sealing perfectly. Multiple bag size and types have gained the national invention patent technology products.
